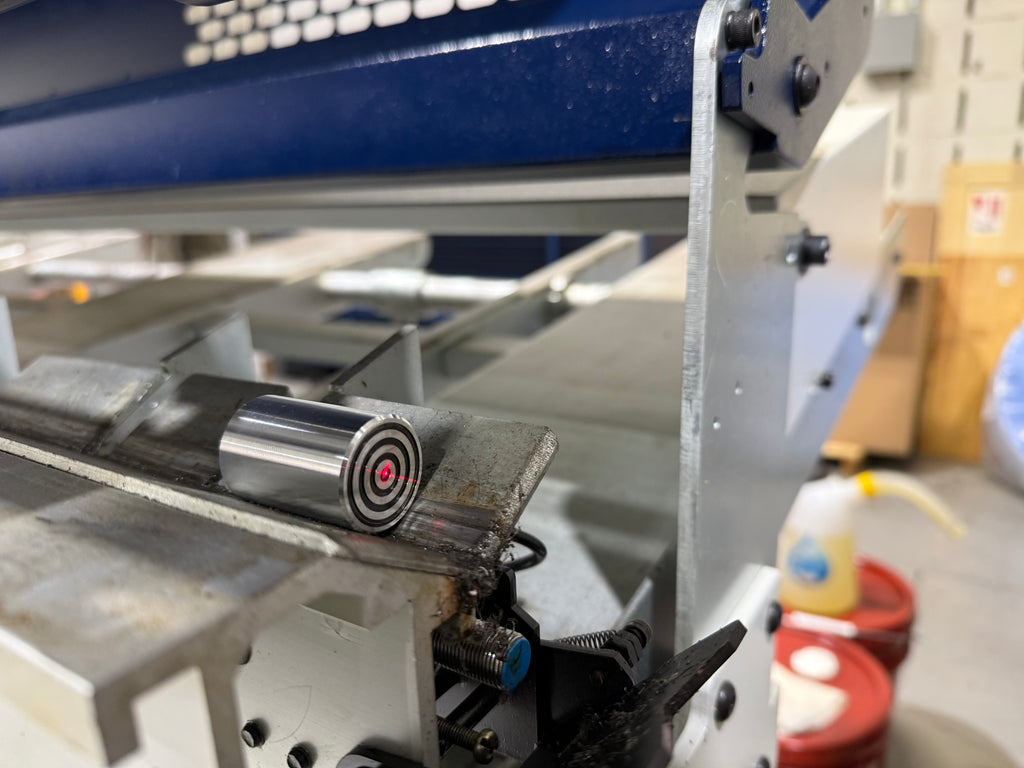

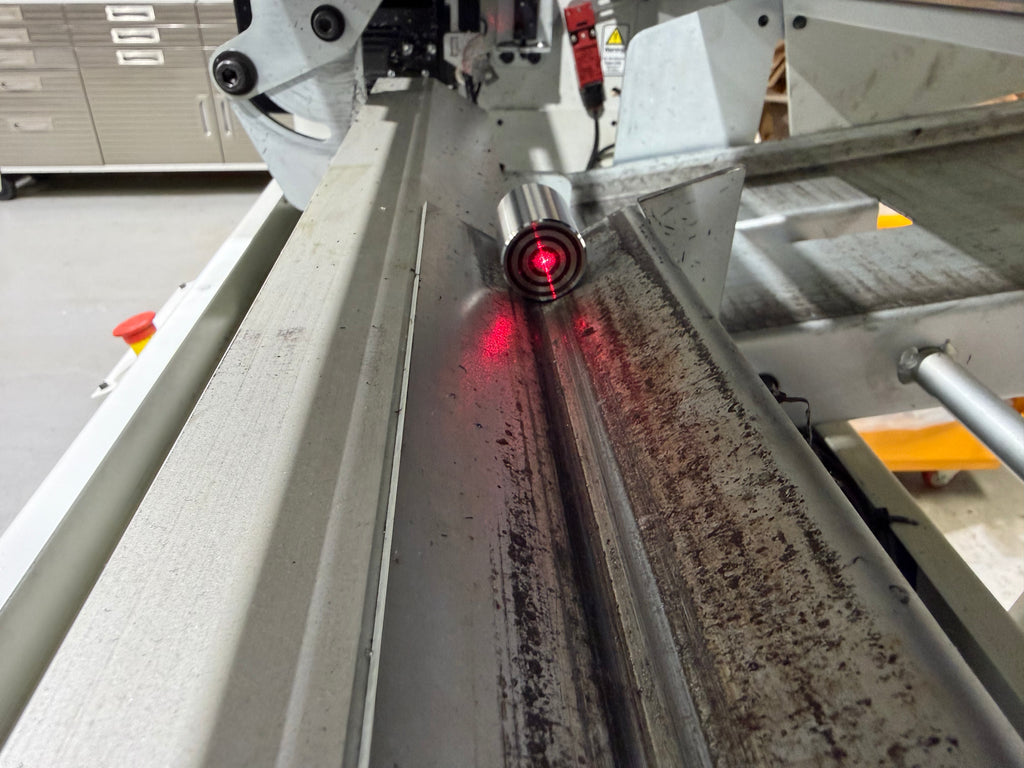

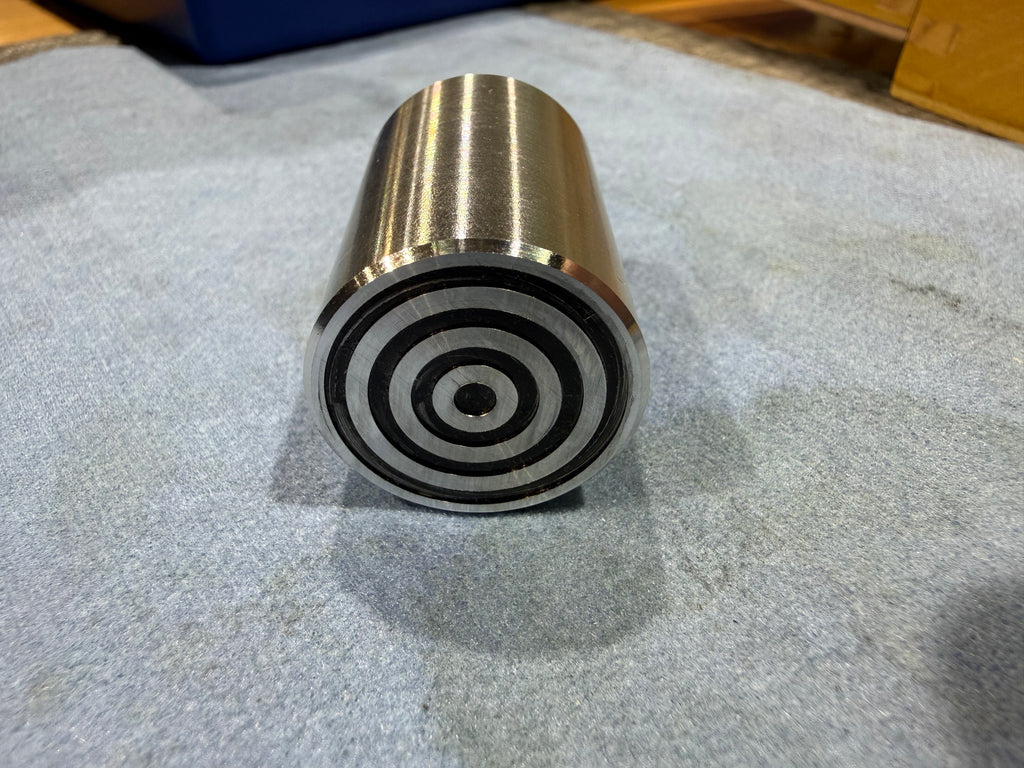

Bar loader alignment target

Precision-machined alignment target designed to simplify bar loader setup and alignment on CNC lathes.

Made from 6061 aluminum for a lightweight yet durable solution, this target provides a clear and repeatable reference point when dialing in bar loader position and spindle alignment. Ideal for quick setups, changeovers, and ensuring consistent bar feed performance.

Specifications:

• Diameter: 1.000"

• Length: 1.500"

• Material: 6061 Aluminum

• Finish: Smooth machined finish

• Application: Bar loader alignment and setup verification

Designed and manufactured by machinists for real shop use — simple, effective, and built to last.
